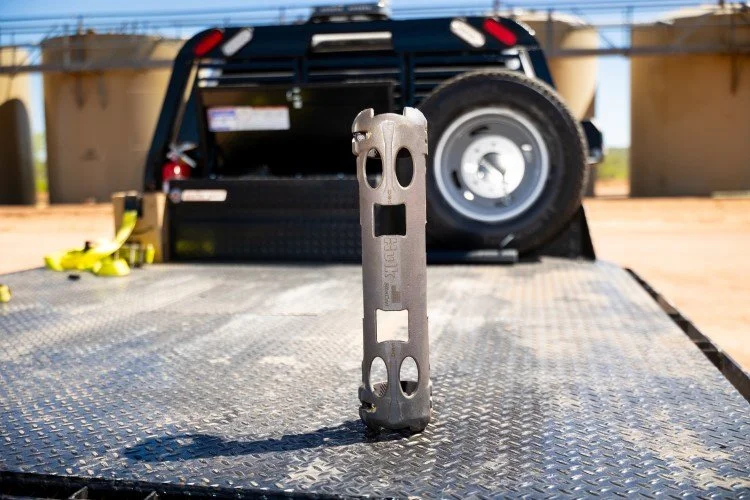

Ductile Iron Casted Cross Collar Clamps
Designed to Take a Beating in the Toughest Wellbore Conditions
7” Wellbore Applications
-
Improved design built to take a beating
Withstand tremendous impacts without shattering
Beveled shape deflects load

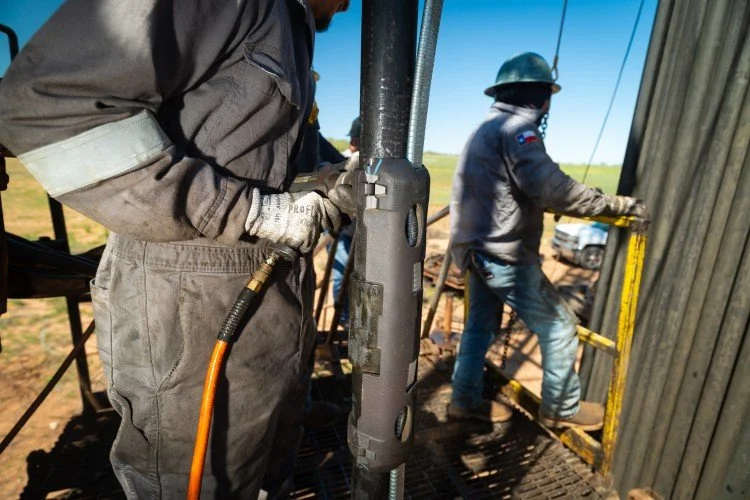

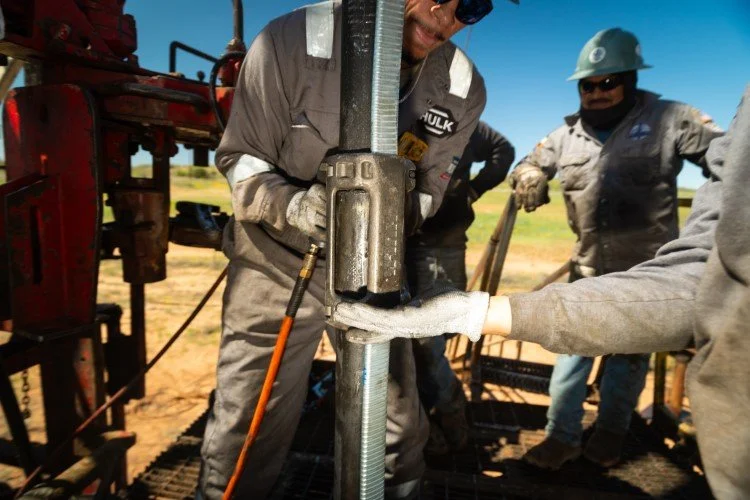

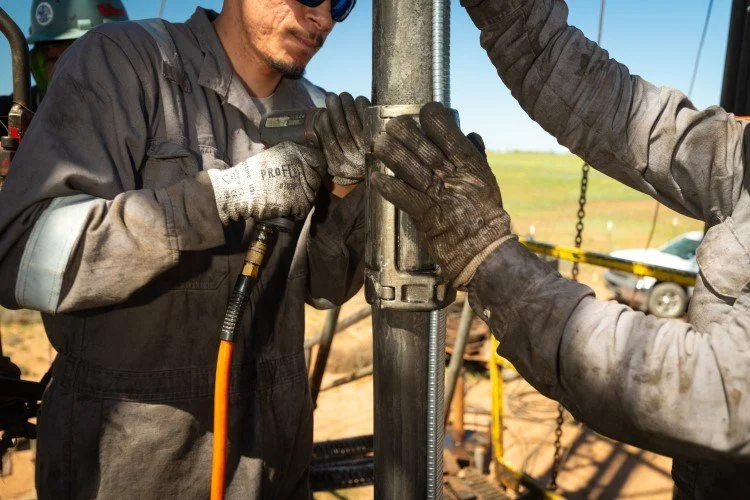

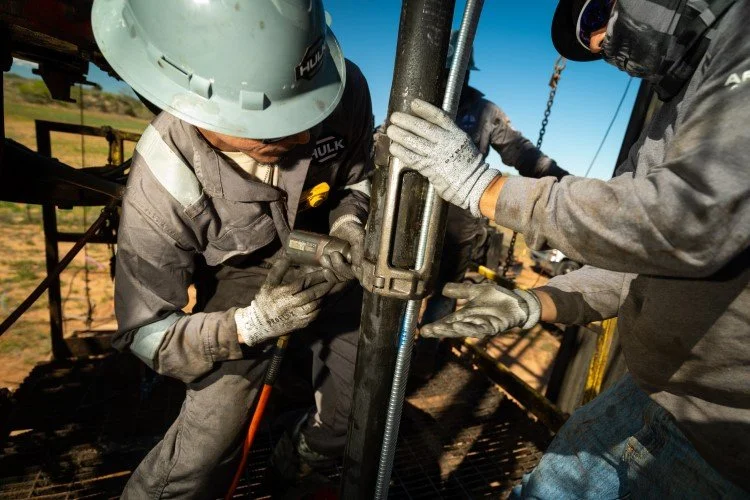

Quick and easy installation, reducing rig time
No loose parts to drop downhole
Grips tubing to prevent rotation

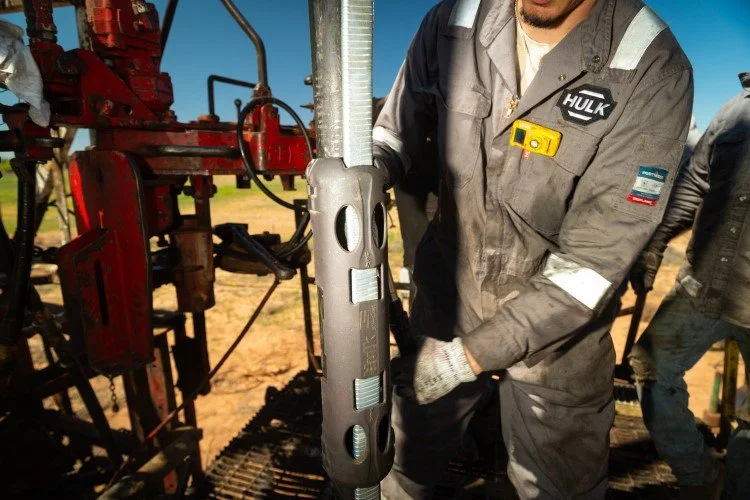

Secures and protects ESP cable at coupling
Built for multiple reruns
Replaces banding near joints
Eliminates cleanouts for bands
-
Premium annealed ductile iron
Heavy duty cable guard with multiple capillary tube slots
Shifts tubing string away from casing
Captive Class 10.9 bolts (Grade 8)
No-slip grip
Improved rotational and axial grip
Single assembly design
Robust
No loose parts
Rapid installation
5 ½” Wellbore Applications
-
Secures and protects ESP cables
Engineered to take a beating
Built to withstand tremendous impacts without shattering
Beveled shape to reduce snagging and deflect load
Installation ease with no loose parts to drop downhole
Grips tubing to prevent rotation
Notched to fit over coupling; avoids sliding and promotes proper installation
Replaces banding near joints
Eliminates cleanouts for bands
Built for multiple reruns
Refurbishment and warehousing/distribution services provided by HULK
-
ESP cable protection
Deviated or inclinated wells
Unconventional horizontals- high DLS and tangents
Chemical treatment with cap tube
Protects gauge line
-
Premium annealed ductile iron
Heavy-duty cable guard with dual capillary tube channels
Shifts tubing string away from casing
Captive Class 10.9 bolts (Grade 8)
No-slip grip, knurling inside clamp arms
Improved rotational and axial grip
Single assembly design
Robust
Captive components
No loose parts
TEC Line Applications
-
Robust design built to take a beating
Withstands tremendous impacts without shattering
Fast installation reduces rig time
Grips tubing to prevent rotation
Secures and protects capillary/TEC lines at coupling
Built for refurbishments and reruns
Replaces banding near joints
Eliminates cleanout for bands
-
Premium annealed ductile iron
Shifts tubing string away from casing
Captive class 10.9 bolts (Grade 8)
No-slip grip
Improved rotation and axial grip
Single assembly design
No loose parts
Banding Costs MORE than HULK
HULK Refurbishment makes the cost-of-ownership of single-use bands LESS than HULK Cross Collar Clamps.
Cost of single-use bands never changes (except when it goes up)
HULK refurbishes clamps by hand making them like-new
Refurbished clamps cost 1/5th the price of new
You can run refurb clamps up to three times
This does not consider the added value of:
Reduced production costs
Longer equipment run life
Cable reuse
Scrap reduction
Increased electrical integrity
Custom Specifications
Unlike any other cable protection manufacturer, HULK is uniquely positioned to deliver custom solutions to your operation in rapid time. Please bring us your cable protection challenges and we will deliver a solution that will help your ESP achieve depth without cable damage.
Email our Director of Engineering: mark.robinson@hulkusa.com
Cable Compatibility
Apergy
Baker Hughes
Borets
Extract Production
Endurance Lift
Novomet
Schlumberger (Reda)
Summit (Halliburton)
Valiant
Custom!
| Version | Designed For | Availability |
|---|---|---|
| Hulk 1.0 - for 7" | 2-7/8" EUE, 1/4" and 3/8" Capillary, #4 Standard Cables | In Stock |
| Hulk 2.0 - for 7" | 2-7/8" EUE, 1/4" and 3/8" Capillary, #4 Heavy Cables | In Stock |
| Hulk 3 - for 7" | 2-7/8" EUE, 1/4" and 3/8" Capillary, #2 Cables | In Stock |
| Hulk MegaCast - for 7" | 3-1/2" EUE, 1/4" and 3/8" Capillary, #2 Cables | In Stock |

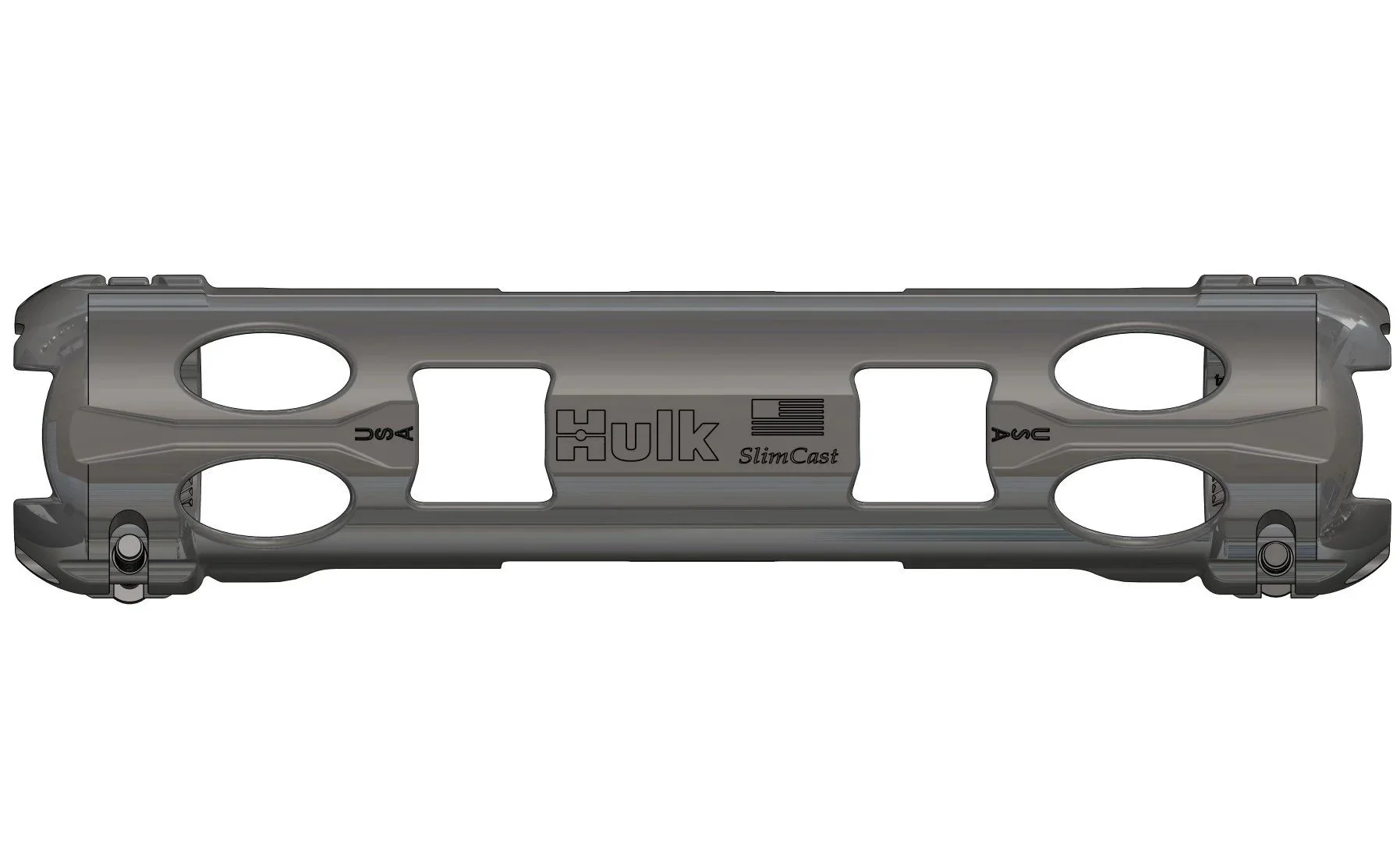

| Hulk SlimCast - for 5.5" | 2-7/8" EUE, Accommodates 1/4", 3/8" and 1/2" Capillary Tubes, All #2 and #4 flat ESP Cables | In Stock |
HULK Cable Protection Delivers Real Value:
✔ Increased life and rerun of cable, reduction in cable scrap by +80%.
✔ Reduction of infancy failures and short runs by 100%.
✔ Eliminates bands and associated workover expenses.
✔ Significant time savings during install and workover.
