HULK VORT-X: Engineered for Variable Flow and Challenging Solids
VORT-X delivers application-specific sand management across 50–12,000 BPD, from intermittent sand slugs to high-volume production.
Purpose-Built for the Application

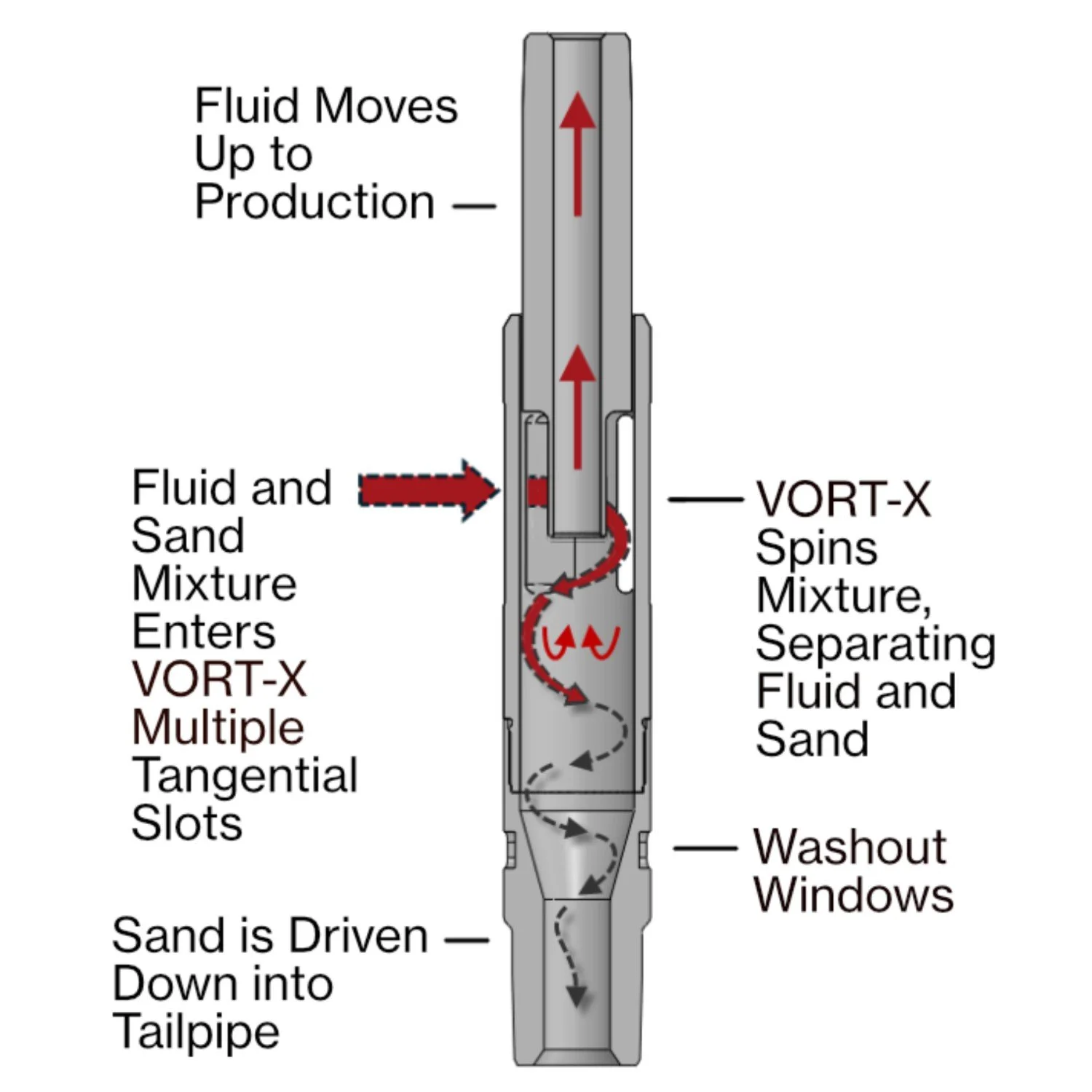

VORT-X is engineered around flow rate, solids loading, and lift method. Tangential inlets and an open flow path separate and homogenize produced sand without screens, moving parts, or internal spirals—helping reduce plugging, erosion, and pump wear.

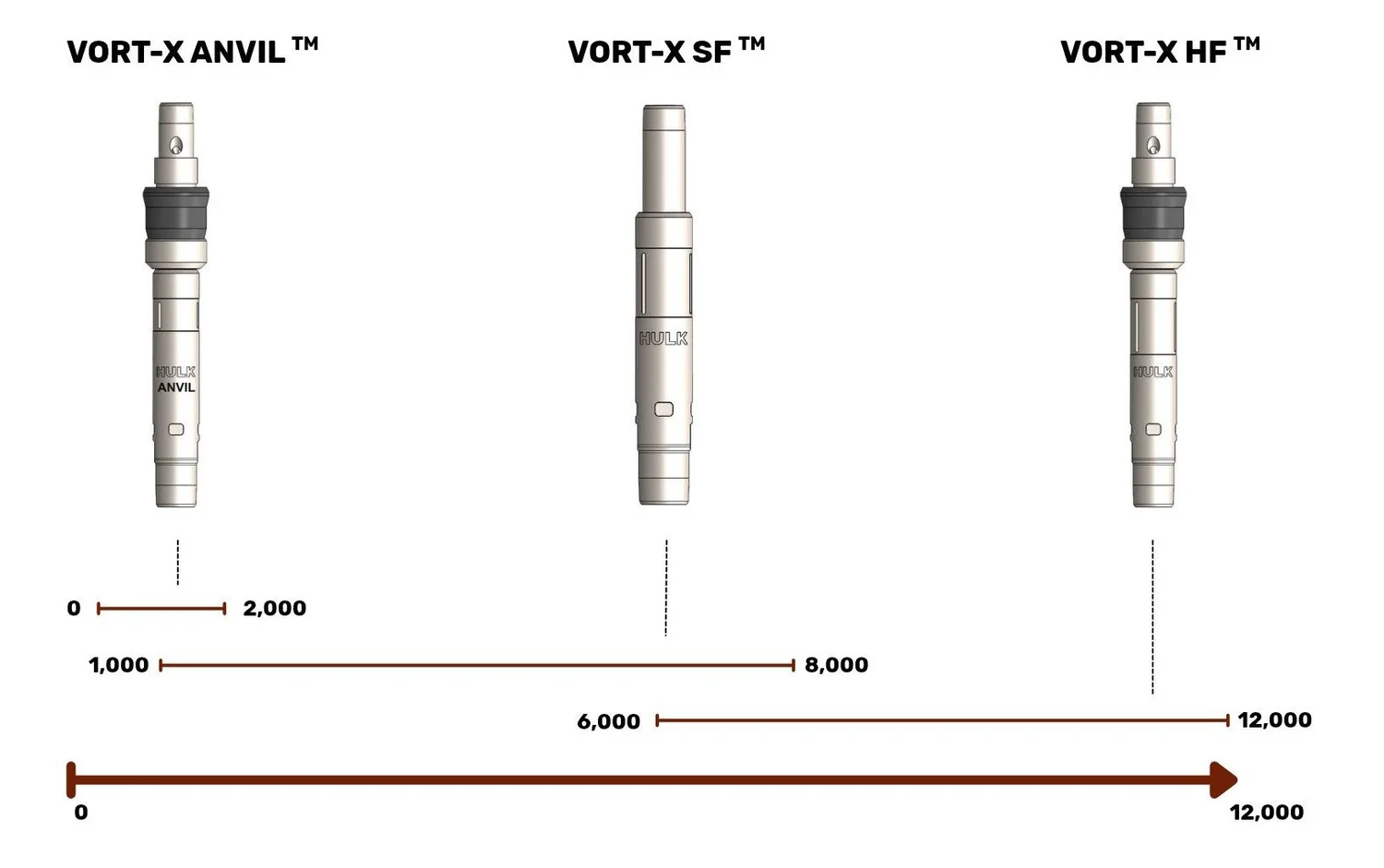

VORT-X ANVIL™
3.5” O.D., 50-2000 BFPD
VORT-X SF™
4” O.D., 1000-6000 BFPD
VORT-X HF™
5” O.D., 4000-12000 BDPF
Proven Performance & Reliability
Built to stay downhole.
4,000+ field installations. Zero structural failures.
135% thicker housing wall and 88% higher computed factor of safety than Brand X.
Stronger by design.
95%+ lab-tested separation of fine sand, 77% better sand-slug performance than Brand X.
High-efficiency sand separation.
15× greater minimum flow area than spiral desanders, helping reduce plugging and scale buildup.
Keep production moving with less restriction.

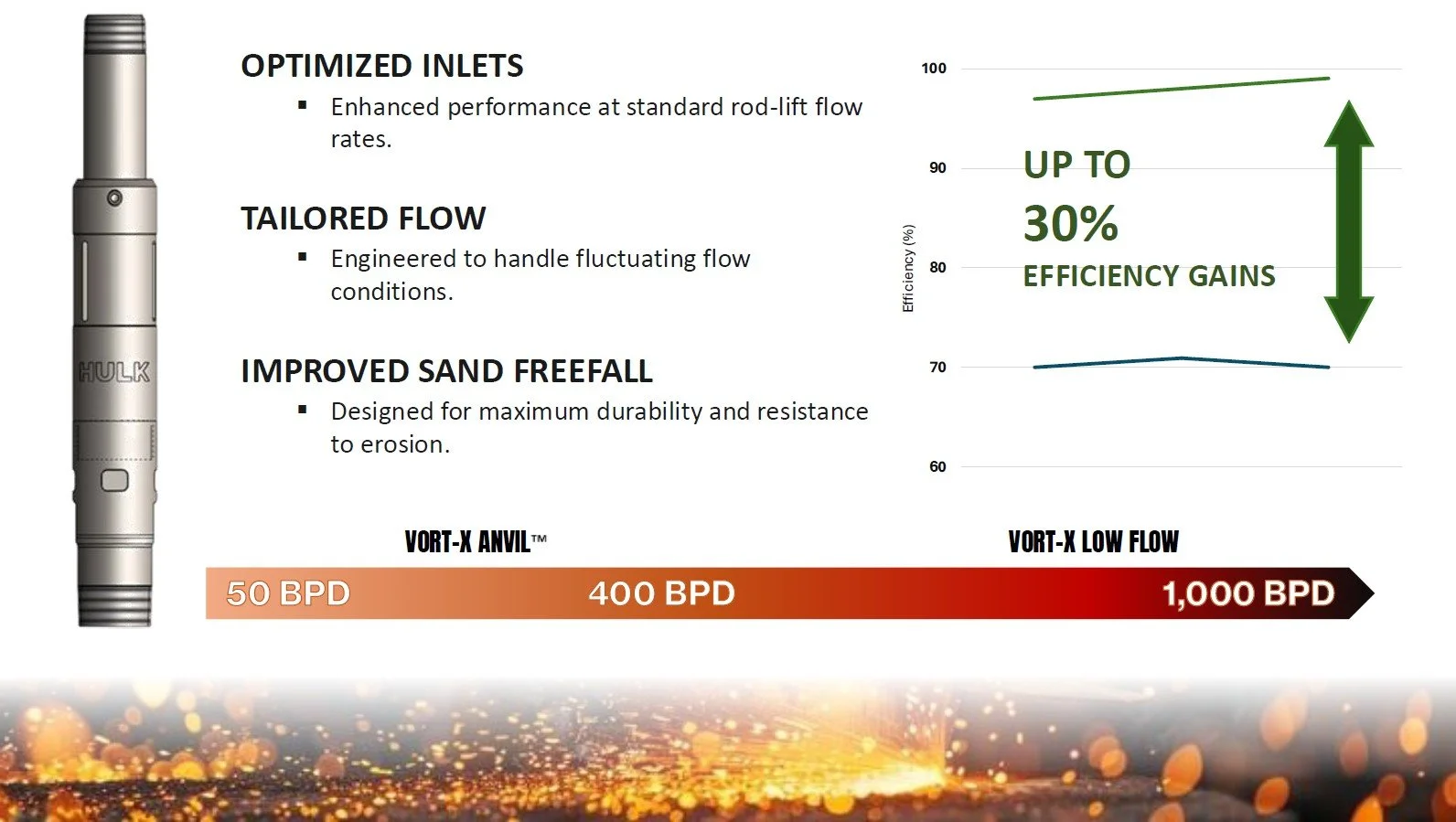

VORT-X ANVIL™
Built for Severe Sand Slugging in Rod Lift
VORT-X ANVIL™ is purpose-built for rod-lift wells experiencing intermittent sand slugs, high solids loading, and changing flow conditions. Its optimized inlet geometry and open flow path help maintain separation performance while reducing plugging, erosion, and wear on the plunger and barrel.
